Ranorex Test Suite, Test Module Creation, UserCode File, Xpath, and Data Binding

In the previous Ranorex part 1 tutorial, we discussed the basic components of Ranorex Studio. Ranorex Studio offers a wide range of tools to make automation testing an easier one.

However, Ranorex is considered to be an important automation testing tool with excellent features in it. It is very simple and easy to use Ranorex. Let’s dive deep into other factors involved in Ranorex.

In this tutorial, we will get to know about a test suite & test module creation, the UserCode file, Editing the Xpath, Data Binding and Ranorex Report in detail.

Ranorex Automated Testing Tool

Modifying UserCode file

As discussed earlier, a recording file is made up of two files, .cs and .UserCode.cs file. .cs file cannot be modified. Any changes to the steps or further validations can be added only in the .UserCode file. .cs file is system generated and is used during compilation. User code is used for custom code entry.

Let us create a test and modify the actions using .UserCode file. Follow the general steps to create a Ranorex project and record a test by using the recording module.

Refer to the image below:

Creating Ranorex Project

A Project by name UserCodeProject.rxtst is created. It has a recording module renamed as UserRecord..rxrec. I have recorded a simple test of opening MyComputer window from Start and closing the window.

Open the .cs file of the recording module.

It will look like something as shown below:

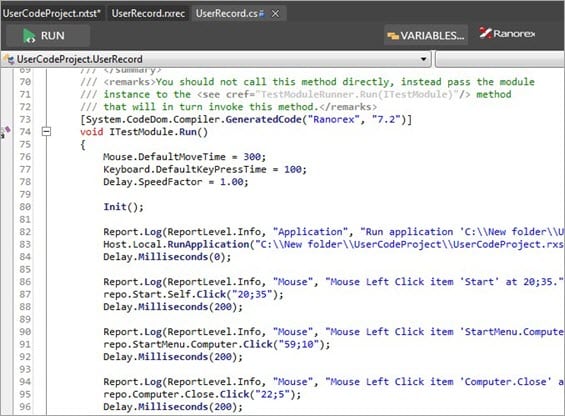

Recording Module

The ITestModule is the base interface that is implemented by a Run method.  The Run method calls will contain all the recorded steps.

Let’s consider the above E.g, it has Clicking on Start Button, Clicking on Computer followed by Closing. This file gets compiled and executed during each Run, and it is generated automatically based on the recorded steps and modified userCode. Hence no changes can be made to this.

Now let’s see how we can add or edit the UserCode file. The UserCode file without any entry will have only Init method.

UserCode file

Now, I am going to add a new method to UserCode file, OpenControlPanel()

Adding Method to Code File

Go back to Recording file (.rxrec) where all the steps will be in tabular form. Now try to add this newly created method.

Adding New Method

Open Control Panel

Click on Confirm Selection. And the method gets saved as a step in the recording file.

Confirm Selection

Now let us check what has happened to .cs file.

Check .cs File

As and when the application becomes complex, the conditions to be tested also grows. And so, grows
the test scripts. Hence, it is very much necessary to have them divided into smaller identifiable modules. The OpenControlPanel() has been automatically added to the.cs file after saving the recorder file. Hence we can directly jump to the generated code of any recorded steps by simply clicking on the step and clicking the View Code option.

Test Cases and Test modules

We came to know how to create and modify test steps from the above example. Now we will look at the ease of dividing these test steps into modules for better maintenance. As and when the test size increases, the number of steps also increases. Further, it will become too difficult to maintain.

Let us create a test suite and a recording module in it.

Create Test Suite

Here, Recording1 is the first recording module for TestCase1. Now let’s see how to create multiple recording modules for TestCase1.

Add Recording Module

Click on the TestCase1 and select the Add option. Under Add, you have a drop-down as New recording Module. Click on that and give a name to the recording module.

I have created three recording modules for TestCase1 as shown below.

Creating 3 Modules

Each recording module can have their own test steps inside them. It is also possible to Move, Cut, Copy and Paste the test steps from one recording module to another.

Data Binding

This is one of my favorite topics in Ranorex. Often our tests will be based on different set of Inputs. We test our application for a state with different input conditions and then verify the output. This is called Data Driven Testing and Ranorex offers a feature called Data Binding to bind the different Input conditions to the test case.

To bind the data, click on the Test case => Select Data Binding

Data Binding

Ranorex offers data binding in 4 ways, as shown in the below image:

  • Simple Data table
  • CSV Connector
  • Excel Connector and
  • SQL Connector

Simple DataTable

I am creating a simple data table. We can give any name to our data table. Here I’m going to keep the default name NewConnector1.

New Connector

Now let us create two Input parameters as Input Number1 and InputNumber2. This can be done by clicking on Add column.

Creating Parameters

So, I have two sets of Input. Enter the input values. Click on Apply and Click ok to close the Data binding window. Now let us create an Add method in the recording1 module.

Open the UserCode of Recording1 and write an Add method which will take two parameters as Input.

Adding parameters to UserCode

Include this method in the recording module.

Adding Methods Recording Module

Now Data bind the Input values. Give a Name to the new variables and you can keep the default value.

Data bind the Input values

Go back to the test case, Open Data Binding, Click on Data Binding tab and map the Module variable to Data Column. Click on Apply and Close the window.

Data Column

So, when every time, ADDNumbers method is called, the input values are taken from the data binding table. This makes Data Driven testing easier and maintainable. Such data can also be created for a test suite, by selecting Global Parameter option from the drop-down.

Editing Xpath

Ranorex Xpath is a powerful identifier of UI elements. Each repository item refers to a Ranorex Xpath. As we have seen in our previous tutorial, Ranorex Spy is used to create the mapping of UI item and add it to the repository file of the test case.

We often come across code logic, where we will need to edit the Xpath for identifying the type of elements required for our test. There are two ways of editing the Xpath: Using Path editor and Editing the path directly in the textbox of Spy itself.

For Example, I ran Spy on a Calculator app and it listed the repository items.

As shown in the below image:

Calculator App- Repository Items

Let’s say that we want a list of all the buttons in a calculator. This can be achieved by editing the path of any button under WinApp ‘Calculator’. Click on the text box path in the top of element browser, press <Ctrl><Space> together to enable the editing.

Text Box Path

After editing the path as shown below, we get a list of the buttons under a Calculator. Observe the change in the hierarchy of elements in the Browser Results also.

list of buttons

Right-click on any element and select Add to a repository, to add it to the current test case repository and refer that in test case file for implementing the code logic.

Add to Repository

Another way of editing a UI Xpath is through Path editor. Go to repository file. Choose the element that you want to edit, and click on the Edit button beside it. This will open the spy in the Path Editor mode where similar changes can be made.

Xpath Editor

Ranorex Reporting

After execution of a test suite, Ranorex report typically looks as shown below:

Ranorex Reporting

It gives an Overview of:

  • How many tests were executed?
  • Name of the test suite, recording module, and steps.
  • System and operating system details.
  • Duration of execution.
  • Pass/Fail details.
  • Pie chart which color codes the result of execution i.e, green when success and red when failure.
  • In case of iterations, where same steps are performed for a different set of Input values, the iteration details will also be shown in the report such as Iteration 1, Iteration 2 and so on.
  • One can filter the log messages by checking and unchecking of checkboxes in the Test Container Filter.

Screenshots can be included in the report by using the Report.Screenshot() method. Screenshots help in fast identification of issues. By clicking on the Screenshot in a report, it can be maximized for better clarity.

Report Screenshot

There are different types of Report levels. Report levels define the kind of output shown in the report.

Few of the pre-defined report levels include:

  • Debug
  • Infor
  • Success
  • Failure
  • Warning

The above can be used in the code as follows:

Final Code

Reports can also be customized by changing the reporting parameters in test suite properties.

Integrating Ranorex with Visual Studio

It is possible to use Ranorex with Visual Studio instead of directly creating projects in the Ranorex. All we need to do is add Ranorex assemblies in VS.

Given below are the main assemblies of Ranorex that should be added:

  1. Ranorex.Core
  2. Ranorex.Common
  3. Ranorex.Bootstrapper
  4. All Ranorex.Plugin assemblies

Steps to be followed:

  • Open Visual Studio.
  • Create New Project.
  • Select .Net version (4.5.2 and higher).
  • Create Console Application.
  • Once the project is created, Right Click on References to add Ranorex assemblies.
  • Ranorex assemblies will be present in the bin folder, usually C:\Program Files (x86)\Ranorex <version>\bin.

Ranorex.Core.Resolver is the assembly which fetches all other assemblies of Ranorex. So it is essential to initialize this by setting it to True, before we start writing the code.

Console App

Reference Manager



In this tutorial, we understood all the deeper layers of Ranorex, especially the usage of UserCode file and Xpath. Also, about Data binding which is a very important feature of Ranorex.

The crux is as below:

  • Ranorex recording module has two files, .cs and.UserCode file.
  • UserCode file is for modification and further addition of code logic and .cs file cannot be manipulated.
  • A test suite can have multiple test cases and each test case can have multiple test modules. Test modules help in the maintenance of code logic in case of numerous test steps.
  • Data Binding offers the ease of testing with multiple inputs and different iterations.
  • Xpath can be edited by Path editor or just by clicking directly on the text box.
  • Ranorex is a comprehensive display of the test results. It can also be customized according to our needs.
  • Integrating Ranorex with VS IDE is easy, it is done just by adding the references in the solution.

Ranorex as a tool, covers all the requirements of an automation testing tool, with GUI object recognition, Data Driven Testing, Reusable code Modules, Record and Playback, Keyword driven testing and so on. It is suitable for all applications, Web, Desktop, and mobile. Recently Ranorex has announced its integration with Selenium also.
