Introduction to IBM Rational DOORS Next Generation Requirements Management Tool

IBM Rational DOORS Next Generation (NG) is an integral part of CLM which helps a Business analyst to capture, analyze and manage the functional and non-functional requirements effectively.

In my experience, I have also used this requirement management tool to collaborate with customers on the requirements captured to provide approvals or for providing go-ahead for further development and testing.

NOTE: This tutorial has many images so allow it to load properly.

In this tutorial, I will explain you about the in-depth usage of IBM Rational DOORS Next Generation but before that let’s take a look at how we created and managed the requirements. Later, I will explain you further on what more can be done for effective requirements management.

Introduction to IBM Rational DOORS Next Generation

Please note that here we are not looking at creating or capturing User Story items as requirements but on creating and managing end user needs. User Story items are plan items from a development point of view and are managed in other tool called IBM Rational Team Concert.

IBM Rational Doors NG

In my previous article on IBM Rational Collaborative Lifecycle Management (CLM) we discussed the integrated view of the following 3 tools which provide end to end delivery process in a single platform which is based on the IBM Jazz.

  • IBM Rational DOORS NG – for Requirements gathering and management
  • IBM Rational Team Concert – for Project Planning, SCM and Build management
  • IBM Rational Quality Management – for Test management activities

IBM Rational DOORS Next Generation provides the following features:

  • Creating and Managing Functional and Non-Functional requirements
  • Business Processes Diagrams
  • Use Case Diagrams
  • UI Sketches and Storyboarding
  • Approval process
  • Impact Analysis

Creating Requirement in IBM Rational DOORS NG

Initially, let us start by creating Requirements.

Assuming that you have read my previous article on IBM Rational CLM to create a lifecycle project, we will login to the same project to start creating and managing the requirements. The requirements once created will be linked to User Stories and Test Cases.

Here are the steps:

#1) Login to RM application using the URL https://<ServerName>:9443/rm/web

Login Screen

#2) Click to select the CLM_Project (Requirements) after logging in. The Public dashboard which will be visible to the team members of this project will come up as shown below.

(Note: Click on any image for an enlarged view)

Selecting the CLM Project

#3) Click on Artifacts -> Browse Artifacts to view the folder structure and to create requirements.

Browse Artifacts

#4) Left click on the ‘Features and Vision’ folder and select Create Artifacts.

Create Artifacts

Features and Vision Option

Enter the name as ‘Place Order for Music CD’, Artifact Type as ‘Feature and Artifact Format as ‘Text’ and click on OK.

#5) The newly created requirement will be shown here.

Newly Created Requirement

#6) Click on the newly created requirement and then click on Edit to add details

Created Requirement

After adding the details, you can see various attributes or property towards your right-hand side that can be used to understand the requirements better. Click on Save once done.

#7) The Glossary which defines the key terms for reference can also be added. To add the same select the word online and then right-click to create Term.

Create Team

Add Initial content for description and make sure Artifact type is selected as Term. Select other details as shown and then click OK. Save the changes as well and then click on Done.

Add Initial Content

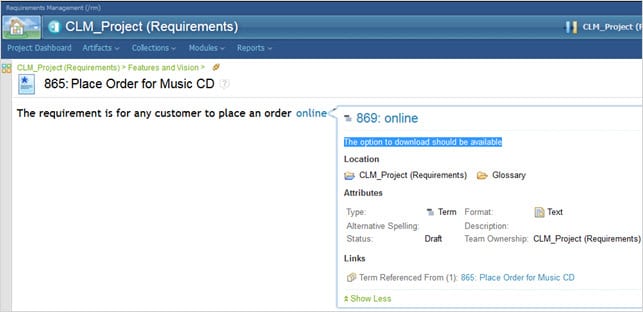

#8) Place the cursor over the glossary TERM as defined below and you will be able to see the meaning.

Glossary TERM

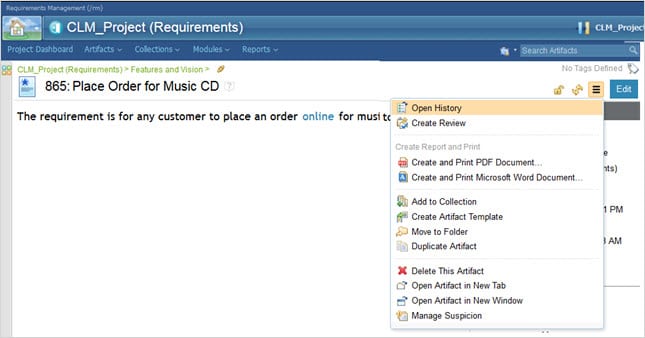

#9) All the changes done during the existence of the project is captured and is available as The History of the requirement which was just created and it will be shown as given below.

Open History Option

History Revisions

All the changes done over a period of time is captured and you can take a look at what changes were done earlier.

If there was any change done on the History screen earlier, then that will also be captured. If any need arises to restore the change done some time back, then you can select the same from the Action menu and select Restore.

Restore Requirement Changes

Restore Option

Click on Close History once done.

#10) Normally teams collaborate on the requirements through email or by some other disconnected means which is not really linked to the requirement.

However, DOORS NG provides a feature to add COMMENT to the requirement and collaborate with the other users. In order to do so EDIT the requirement and go to the COMMENTS category below on the right-hand side to Create a comment for Artifact.

Create comment for Artifact

Creating comment for Artifact

Add as shown above and then click OK. The user in the comment mentioned can log in to the project. The task mentioned for the user will appear on the dashboard and he can reply to the comment as well.

Reply to comment

This is a handy feature to do a quick review and it will be visible to the entire team.

#11) Now let’s look at how to display or to add values to the attributes for the newly created requirement in the Artifact dashboard. Go to Artifacts => Browse Artifacts, click on the Features and Vision Select the requirement just created and then click on the option ‘Edit Attributes’.

Edit Attributes

Edit Attributes

Select the attributes to add the value as shown below, later modify them and click on Save.

Changing Attributes

#12) In order to display the attributes click on the icon to select the ‘Configure Page Settings’.

Configure Page Settings

#13) Click on ‘Configure Columns to Display’

Configure Columns to Display

#14) Select the Business Priority and Description attributes to be displayed. Unselect the ones which are not required. Then click on OK

Business Priority and Description attributes

Created a Business Requirement Type

As you have seen we have created a Business Requirement of type Feature, DOORS NG also allows you to create different types of requirement like Actors, Non-Functional requirements, any custom requirement types and also defines their attributes, Comments for collaboration, Glossary, History etc.,

Defining the Business Process

We will now create a Business Process diagram to support the Business Requirement created earlier. Business Process diagram is easier to visualize for the business users rather than a textual format. In IBM Rational DOORS NG, it is created using the BPMN notation which stands for Business Process Modeling Notation and it is an industry standard as well.

#1) To create the Business Process diagram left click on the folder ‘Process’ and then select ‘Create Artifact’.

Create Artifact

#2) Give the name as ‘Purchase Music CD Online’ and Artifact type as ‘Business Process Diagram’

Artifact type

#3) The Process diagram created will be displayed and opened automatically. If not click on it to open the diagram.

Process diagram

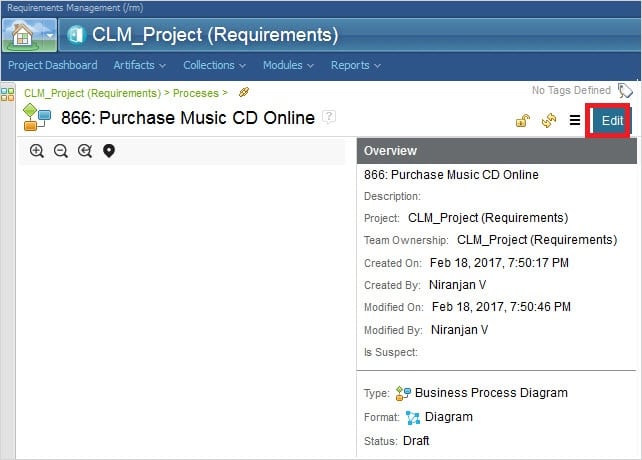

Click on Edit to open the diagram in a graphical editor. To open any graphical artifacts an RM Browser add-on needs to be available and it will be installed automatically on the edit of any graphical artifact. This is a one-time installation of the browser.

Please refer this article to troubleshoot any issues with the add-on.

RM Browser add-on

Graphical Editor

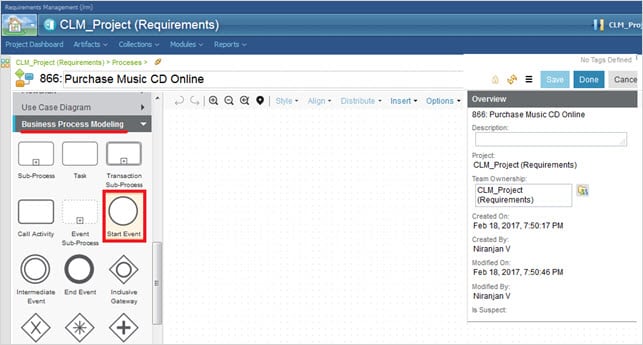

#4) Under Business Modeling category, select Start Event notation and drag it to the diagram editor.

Start Event Notation

Name the Start Event as ‘Launch Website’, while the notation is selected start typing to name it.

Launch Website

Create a Task and name it as ‘Browse Music Store Online’.

Browse Music Store Online

Click on the Connector icon and then drag it to the TASK as shown below.

Connector icon

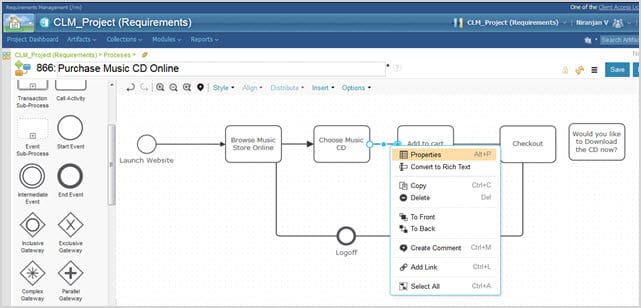

#5) To add arrows in between TASKS select the arrow and click on Properties

Adding Arrows

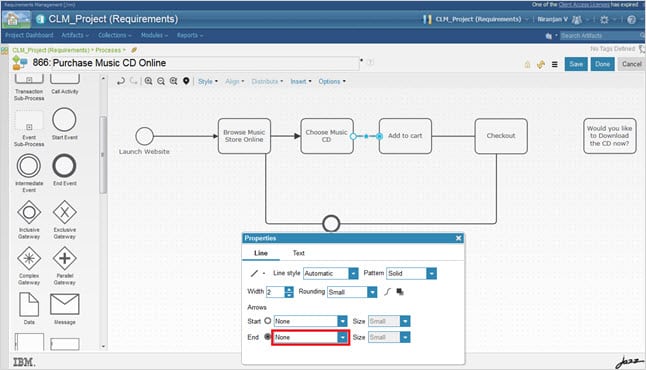

#6) For the End drop-down select the appropriate arrow.

Select the appropriate arrow

Selecting the Arrow

#7) Now complete the diagram as shown and add an End Event for Logoff as shown below. Save the diagram once done.

End Event for Logoff

User Interface Sketch

Let’s now create a User Interface Sketch. The UI sketch provides an initial view of how the web page would look like once implemented.

#1) To start creating a UI Sketch go back to the main Artifacts page and create a Folder to hold the UI sketches.

Create a Folder

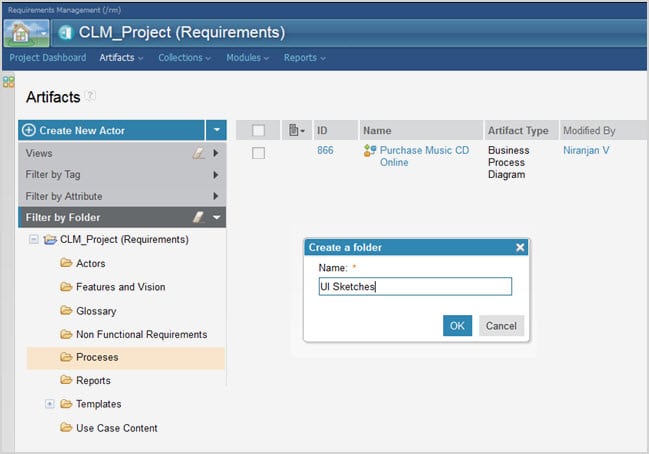

#2) Name it as UI Sketches and then click OK.

UI Sketches

Note: Starting CLM 6.0.1 in case you need to create legacy graphical diagrams the option “Enable creation of plug-in based on graphical artifact formats” should be set to true. If not enabled then set it to true and then restart the CLM Server.

Enable creation of plug-in based graphical artifact formats

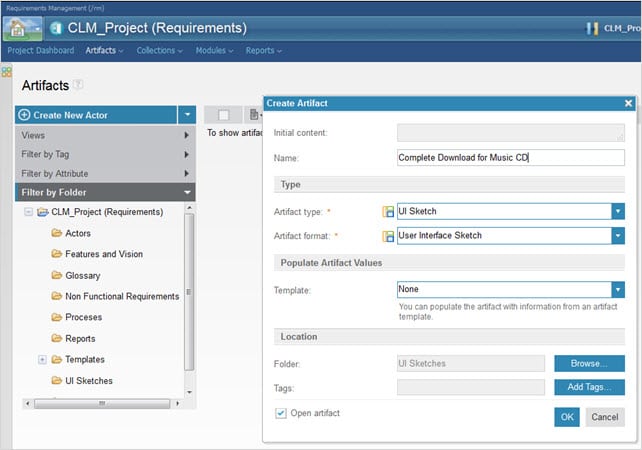

#3) On the UI Sketches folder create a UI type artifact and name it as Complete Download for Music CD.

Create UI Artifact

Selecting Artifact Type

Click OK and the artifact will be opened. If in case you are asked to install the RM Browser Add-On then click OK to install it. It is preferable to use the IE11 browser to create the diagram artifacts.

RM Browser Add-On Pop Up

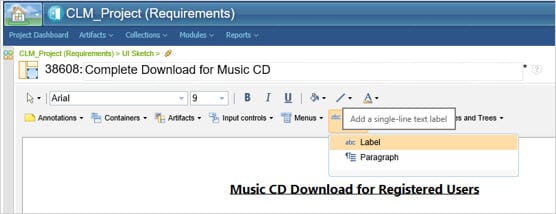

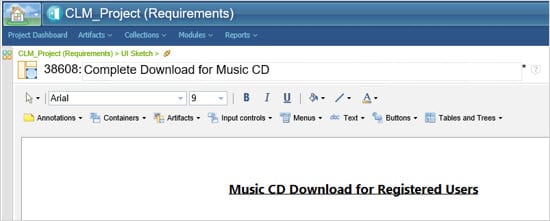

#4) Once the diagram artifact is opened, start by adding a Label and type the following as shown below.

Adding a Label

Label saved

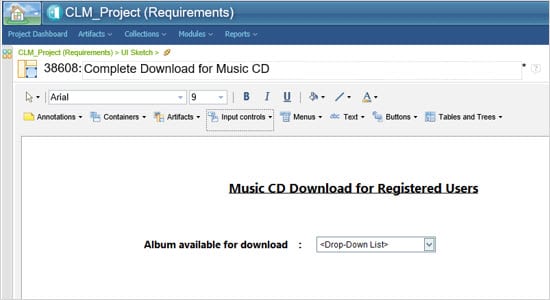

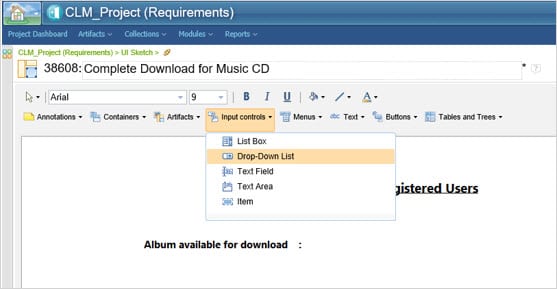

#5) Next, add a Drop-Down list along with the Label as shown below

Add a Drop-Down list

Drop-Down list

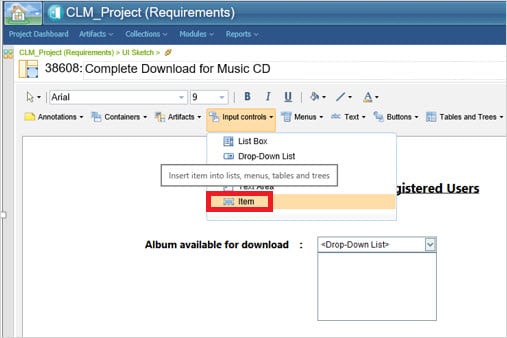

#6) Insert the Items to the Drop-Down list from the Input Controls menu

Items to the Drop-Down list

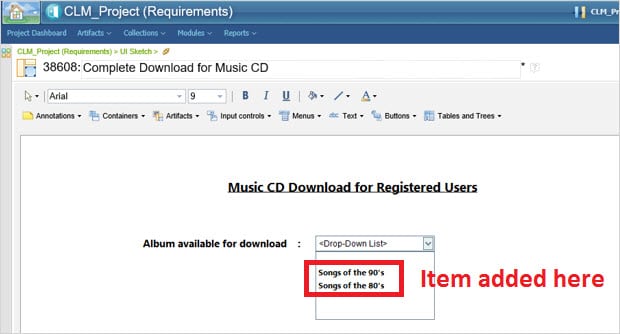

Drag the Items into the space inside the Drop-Down list

Adding to Drop-Down list

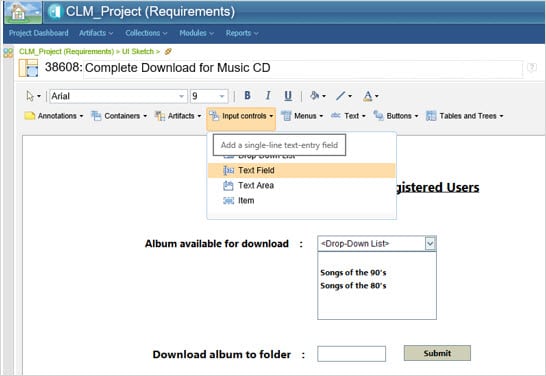

#7) Add a Text Field and a Button below to complete the UI Sketch

Add a Text Field

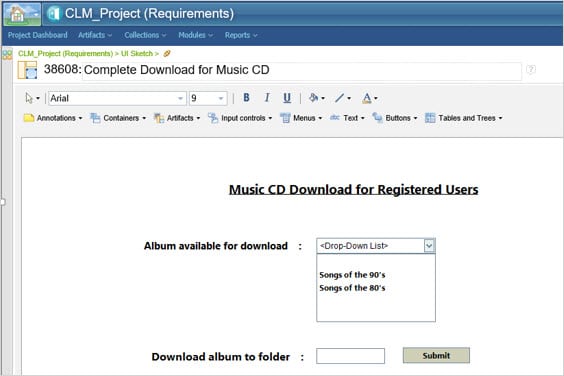

#8) Final view of the sketch looks like the image given below

Final view of the sketch

Collections and Reports

IBM Rational DOORS NG provides a feature to prioritize your requirements in an agile way. This feature is called Collections.

You can either create an Iterative or Release Collection which will be later linked to either a Sprint or a Release plan during Development. Once Collection is created you can add the prioritized requirements to be planned for future development and testing.

Create Collection

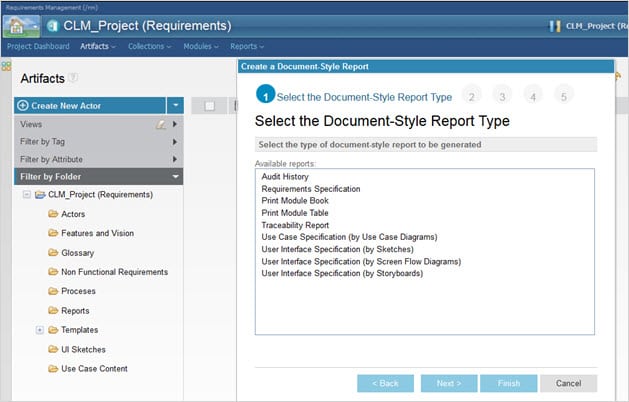

Finally, I am concluding with the different Reports that can be generated for review or documentation purposes. From the Reports, menu select the option to generate the report.

Generate a Document Syyle Report

Following pre-defined reports can be generated and saved as a Word document or a PDF file.

Document Style Report


Well, in this IBM Rational DOORS Next Generation tutorial we have seen about the requirement management process that every team should follow for effective delivery of any application or product. There is an old saying which says “Requirement errors caught early is less expensive to fix than later”.

Effective requirements gathering and management are very crucial in understanding and prioritizing the needs of the customer.

In my upcoming tutorials, we will see more about tools like IBM Rational Team Concert which is used for development & build and IBM Urban code Deploy for deployment automation. The last in the series for IBM Rational CLM is Rational Quality Manager for Test Management which all of you have already seen and read about.

Let us know your thoughts/suggestions in the comments section below.
