This introductory tutorial will explain everything that you need to know about JFrog Artifactory. Discover more about Maven Package Type and its usage with simple examples:
As a project team, you need a repository to store your Build Artifacts and their versions. JFrog Artifactory is the repository manager that helps to store all the artifacts be they binaries or dependencies or any kind of configuration files.
JFrog Artifactory supports multiple package types as shown below to securely store all the artifacts produced by these package types. The most common ones that I have used are Maven, Docker, and NPM.
=> SCROLL DOWN to See the List of In-Depth JFrog Tutorials in this Series
Table of Contents:
JFrog Artifactory: A Complete Guide
List of Tutorials in this JFrog Series:
Tutorial #1: JFrog Artifactory Tutorial: Introduction and Maven Package Type (This Tutorial)
Tutorial #2: Create Generic, Python and Docker Package Repositories
Tutorial #3: NPM Package Type and Jenkins Integration
Tutorial #4: Working with Gradle and GO Package Type
Tutorial #5: PHP Composer, NuGet and Gems Package Type in JFrog Artifactory
Tutorial #6: Setup of RPM and Debian Repositories
Tutorial #7: General Administration Activities in JFrog Artifactory
Tutorial #8: JFrog Artifactory Query Language (AQL)REST API and Command Line Interface (CLI)
What is JFrog Artifactory?
JFrog Artifactory is a single source of truth for securely storing all of your development artifacts and is a very important component of any CI/CD tool. You can think of Artifactory as a binding force between the developers and any external resources.
Artifactory provides quick access to remote artifacts using the remote repository concept wherein they are cached locally. So a developer is redirected to Artifactory only for access to remote artifacts as they are cached locally in the remote repository.
In this JFrog series, we will look at the following topics:
- Where does Artifactory fit in the CI process
- Types of repositories (Local, Remote, Virtual, and Federated)
- Creating repositories
- User Management and Tokens
- Property Set
- Using Artifactory for Maven, Generic, Docker, NPM, Gradle, and GO package types
- Integration with Jenkins
Here, we have used the JFrog Artifactory SAAS/Cloud trial version to demonstrate the above. The 14-day trial version can be requested from the link Start For Free With Artifactory and Xray | JFrog.
Once you sign up, a user with admin privileges will be created. This article will be focussed on using the Maven package type example in JFrog Artifactory
Where Does Artifactory Fit in the CI Process
As we know Artifactory is a very important component of the Continuous Integration (CI) process, the below diagram will give an idea. Artifactory is integrated with most of the major CI tools.
Types of Repositories
A repository in Artifactory stores the artifacts in all package formats as shown in the introduction. A repository can be a source that holds all artifacts needed for any build and also a target to store the artifacts generated out of the build.
Artifactory supports the following types of repositories:
- Local Repository: Central location to store your artifacts generated by builds.
- Remote Repository: Cache of a repository that is managed remotely. You cannot deploy to a remote repository. The remote repository provides faster access to dependencies stored in remote URLs. Issues such as network latency, poor connectivity to remote sites, and downtimes can be avoided with the use of the remote repository.
- Virtual Repository: Combination of both local and remote repositories having a common endpoint.
- Federated Repository: This type of repository is used in a multisite kind of environment allowing the mirror of artifacts to another Federated repository site located remotely. You can think of a Federated repository as a kind of local repository only.
Typically, when using a Federated repository setup, it is suggested to use JFrog Artifactory repositories in the below way.
Virtual Repository = Federated repository + Remote repository
Usage of a Virtual repository will give you one URL endpoint to download dependencies and deploy artifacts as well.
In this article, for all examples, we will use Virtual Repository = Local repository + Remote repository.
Create Maven Local Repository
A local repository is a central location to store your artifacts generated by builds. To create a local repository as an Admin user, select Administration TAB -> Repositories. Now click on + Add Repository in the top right and select Local Repository.
Select Maven package type.
Provide a repository key.
Click on Create Local Repository.
Go to the Application TAB -> Artifacts to search for the repository just created.
Create Maven Remote Repository
A remote repository is the cache of a repository that is managed remotely. Let’s look at how to create a Maven remote repository.
As an Admin user, select Administration TAB -> Repositories. Now click on + Add Repository -> Remote Repository in the top right. Select Maven.
Provide the repository key and leave the remote URL as is. Click on Test. You will see a successful connection message at the top.
Click on Create Remote Repository. The remote repository should be now available in the list.
Create Maven Virtual Repository
A virtual repository is a combination of both local and remote repositories having a common endpoint
As an Admin user, select Administration TAB -> Repositories. Now click on + Add Repository -> Virtual Repository in the top right. Select Maven.
Provide the Repository key and scroll down to add both local and remote repositories. Also, set up the Default Deployment repository for the local repository.

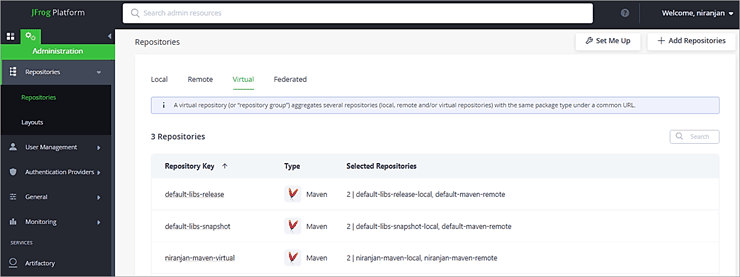

Click on Create Virtual Repository. The virtual repository should now be available.
User Management and Tokens
Before we look at a Maven example let’s look at how User Management and Tokens in Artifactory can be managed from the Administration Tab. Once you log in to the Artifactory URL go to the Administration TAB.
Now click on User Management -> Users
Click on + New user

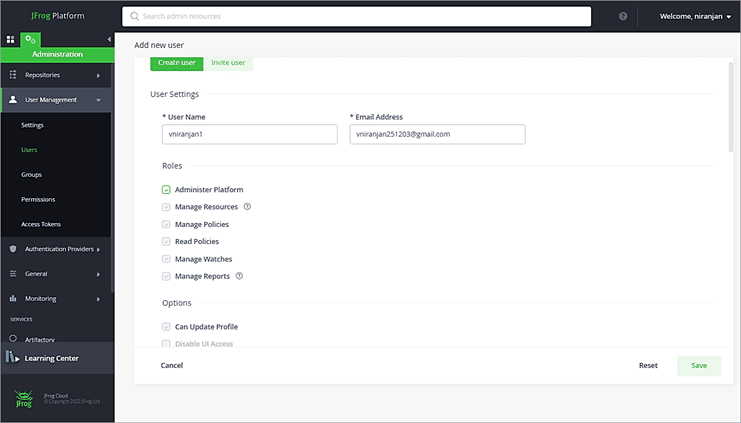

Enter a Username, email, and password (scroll below to provide the same)
If the user is supposed to be Admin then click on the role Administer Platform. Click on Save. We still have not provided access to any repository for the user. To do this we need to create a Permission Target.
Create Permission Target (Providing access to repository)
In the Administration Tab, click on Permissions under User Management.
Click on +New Permission. Provide a name and click on + Add Repositories.

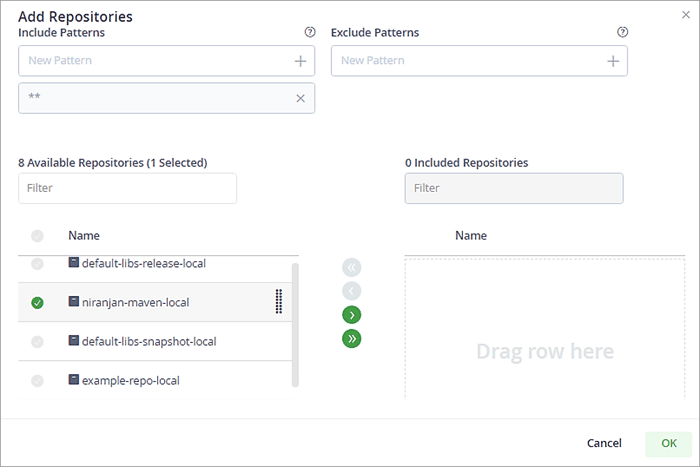

Select the Local Repository (Maven) created in the previous section.
Click OK.
Click on the Users Tab and + under Selected Users
Click OK once you select all users.
Select the appropriate permissions under the Repositories section and click on Create.
Admin users will have access to all repositories by default. Users can log in and start accessing the repositories. Normally if SAML Single Sign On is enabled then users will log in with their corporate ID and Password. More about configuring SAML for your JFrog site can be found @ SAML SSO – JFrog – JFrog Documentation
Creating an Identity Token
Creating any kind of token provides a flexible way of authentication. We will look at how it can be used, especially in pipelines or logins using Docker.
Go to the User Profile. Edit Profile
Unlock your profile.
Click on Generate an Identity Token.
Copy and Save the token.
Property Sets
Typically, when you want to tag a repository, you can use Property sets to define a property of single or multiple values. Property sets can also be used in locating items.
For e.g. You can tag the repository being used exclusively in Indian or European locations so that the teams have the clarity to upload any artifacts appropriately.
To create a Property set, go to Admin Tab -> Services -> Artifactory -> General -> Property Sets
Click on New Property Set.
Provide a name and click on New Record.
Add a Property Name using a Single Select value and click on Save.
Click on Save on the main Property Set screen.
Assigning Property set to Repository
To assign a Property set to a repository, go to Administration Tab -> Repositories. Go to the Advanced Tab of the repository and add the property set just created. Click on Save once done.
Apply the Property Set and value to a Local Repository
Go to the Application TAB, click on the local repository, and click on Properties -> Property set sub-tab. You need not be an Admin to perform the below steps.
Select the Property set and value and click on Add. Selecting Recursive will add to all folders and artifacts under the repository. The final view is shown below after selecting the Property set and values.
JFrog Artifactory Maven Example
In this section, we will look at how to compile and upload Maven artifacts to the Maven local repository while using the dependencies from the Maven remote repository for compilation.
To set up, a user goes to Application TAB -> Artifactory -> Artifacts. Search for the Virtual repository and click on Set Me Up.
Setup the values as shown below and click on Generate Settings.
You can download the snippet or copy the text to the settings.xml which is in the ~/.m2 directory.
Here is the modified settings.xml file. Ensure to update the text in GREEN for your settings.
Encrypted password which is needed for settings.xml files can be found in your User profile.
<?xml version="1.0" encoding="UTF-8"?>
<settings xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.2.0
http://maven.apache.org/xsd/settings-1.2.0.xsd" xmlns="http://maven.apache.org/SETTINGS/1.2.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<servers>
<server>
<username>niranjan</username>
<password>Insert-Encrypted-PWD</password>
<id>central</id>
</server>
<server>
<username>niranjan</username>
<password> Insert-Encrypted-PWD </password>
<id>snapshots</id>
</server>
</servers>
<profiles>
<profile>
<repositories>
<repository>
<snapshots>
<enabled>false</enabled>
</snapshots>
<id>central</id>
<name>niranjan-maven-virtual</name>
<url>https://vniranjan25.jfrog.io/artifactory/niranjan-maven-virtual</url>
</repository>
<repository>
<snapshots>
<enabled>false</enabled>
</snapshots>
<id>central</id>
<name>niranjan-maven-virtual</name>
<url>https://vniranjan25.jfrog.io/artifactory/niranjan-maven-virtual</url>
</repository>
<repository>
<snapshots />
<id>snapshots</id>
<name>niranjan-maven-virtual</name>
<url>https://vniranjan25.jfrog.io/artifactory/niranjan-maven-virtual</url>
</repository>
</repositories>
<pluginRepositories>
<pluginRepository>
<snapshots>
<enabled>false</enabled>
</snapshots>
<id>central</id>
<name>niranjan-maven-virtual</name>
<url>https://vniranjan25.jfrog.io/artifactory/niranjan-maven-virtual</url>
</pluginRepository>
<pluginRepository>
<snapshots />
<id>snapshots</id>
<name>niranjan-maven-virtual</name>
<url>https://vniranjan25.jfrog.io/artifactory/niranjan-maven-virtual</url>
</pluginRepository>
</pluginRepositories>
<id>artifactory</id>
</profile>
</profiles>
<activeProfiles>
<activeProfile>artifactory</activeProfile>
</activeProfiles>
</settings>
Go back to the Set Me Up for the virtual repository and go to the Deploy tab. Copy the content to the pom.xml file which will be used to upload the maven artifacts to the local repository.
Now run the command below to Build and Deploy as below.
mvn clean install
The dependencies downloaded are from the JFrog Artifactory remote repository.
mvn deploy
Now, look at the Local repository which was configured as the default deployment repository.
Conclusion
In this tutorial, we looked at what Artifactory is, how it fits into the CI process, different repository types, and its usage along with what is a property set. This article focused on the Maven Package type with an example.
In the next part of the series, we will look at how to use JFrog Artifactory for Generic, Python, and Docker Package types along with using the Artifactory plugin in Jenkins.
