This tutorial on Gradle and GO Package Type will explain how to create local, remote, and virtual repositories along with the configuration of GO Repo with pictorial examples:
In our earlier tutorials of this JFrog Artifactory article series, we did see how to use the generic, python, and docker package types. In this part, we will look at Gradle and GO package types.
For each of the package types for Gradle and GO we will do the following:
- Create local repository
- Create remote repository
- Create a virtual repository with a combination of the first 2 repositories
=> Complete JFrog Guide for ALL
Table of Contents:
Getting Started with Gradle and GO Package Type
Gradle Package Type
Create Local Repository

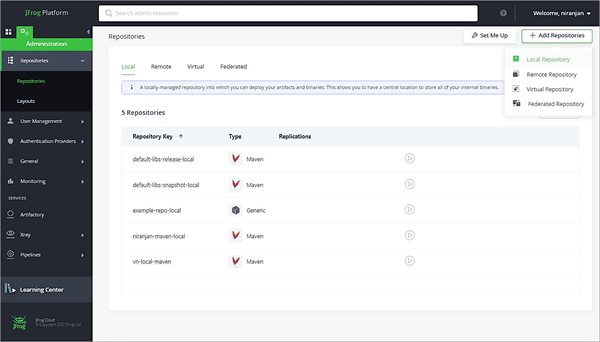

Local repository is a central location to upload and store your artifacts generated by builds. To create a local repository as an Admin user, select Administration TAB -> Repositories. Now click on + Add Repository in the top right and select Local Repository.
Select Gradle as the package type.
Enter the Repository Key and click on Create Local Repository.
Create Remote Repository
Remote repository is a cache of a repository that is managed remotely. Let’s look at how to create a Maven remote repository.
As an Admin user, select Administration TAB -> Repositories. Now click on + Add Repository –> Remote Repository in the top right. Select the NPM package type and enter the details below:
Click on Create Remote Repository.
Create Virtual Repository
Virtual repository is a combination of both local and remote repositories having a common endpoint. To create a Virtual repository as an Admin user, select Administration TAB -> Repositories. Now click on + Add Repository -> Virtual Repository in the top right. Select NPM.
Add local and remote repositories and also set the Default deployment repository to the local repository.
Add both local and remote repositories and set the default deployment repository as shown.
Click on Create Virtual Repository
JFrog Artifactory Gradle Example
In this section, we will look at how to build a Gradle project using the remote repository and publish it to the local repository.
To set up, as a user, go to Application TAB -> Artifactory -> Artifacts. Search for the Virtual repository and click on Set Me Up.
Click on Generate Settings. Copy the text to build.gradle file in the root folder of the project.
Download the gradle.properties file. The location of the file in Linux is typically in /home/{UserName}/.gradle and for windows, it is in c:\users\{UserName}\.gradle
Copy the text and save it in build.gradle file of the Gradle project. Add the additional text in GREEN to the file.
buildscript {
repositories {
jcenter {
url 'https://vniranjan2512.jfrog.io/artifactory/niranjan-gradle-virtual'
credentials {
username = "${artifactory_user}"
password = "${artifactory_password}"
}
}
}
dependencies {
//Check for the latest version here: http://plugins.gradle.org/plugin/com.jfrog.artifactory
classpath "org.jfrog.buildinfo:build-info-extractor-gradle:4+"
}
}
allprojects {
apply plugin: "com.jfrog.artifactory"
apply plugin: 'maven-publish'
apply plugin: 'java'
}
version = '0.3.0-SNAPSHOT'
artifactory {
contextUrl = "${artifactory_contextUrl}" //The base Artifactory URL if not overridden by the publisher/resolver
publish {
repository {
repoKey = 'niranjan-gradle-local'
username = "${artifactory_user}"
password = "${artifactory_password}"
maven = true
}
defaults {
publications ('mavenJava')
}
}
resolve {
repository {
repoKey = 'niranjan-gradle-virtual'
username = "${artifactory_user}"
password = "${artifactory_password}"
maven = true
}
}
}
publishing {
publications {
mavenJava(MavenPublication) {
from components.java
}
}
}
gradle.properties file – Artifactory context URL and credentials are stored in a file and it looks as below.
artifactory_user=niranjan
artifactory_password=<Password generated by Artifactory>
artifactory_contextUrl=https://vniranjan2512.jfrog.io/artifactory
Gradle Project and Build JAR File
Created a Java Gradle project with a Groovy script option.
Let’s run the build command. The command will show from where the dependencies are being downloaded which should be from Artifactory.
gradle build –refresh-dependencies –info
gradle run
Suggested Reading =>> How to use Gradle to create a Project
Publish JAR Artifact Using Gradle to JFrog Artifactory
In this section, we will run the below command to publish the JAR and the POM file to JFrog Artifactory.
gradle artifactoryPublish
Look at the deployed artifact in JFrog Artifactory.
Gradle Integration with Jenkins
In this section, we will look at how to configure Gradle and its integration with Jenkins. We will look at how to Build and Publish to Artifactory.
- In Jenkins as admin go to Manage Jenkins -> Global Tool Configuration

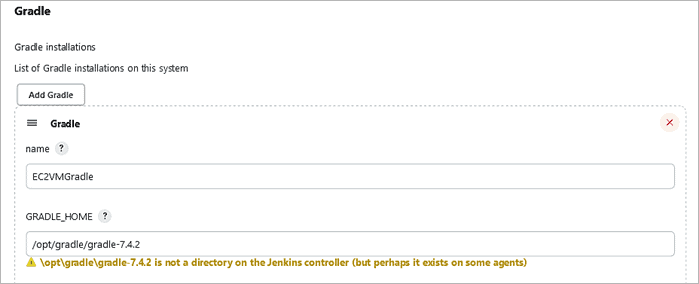

Click on Add Gradle.
Add details as per your installation and click on Save.
- Configure Jenkins Job as shown
Add Build Step -> Invoke Gradle Script twice and add the tasks for Build and artifactoryPublish
Click on Save and trigger the build.
Go to Artifactory and look at the artifacts deployed under the local repo.
Configuring Proxy Settings in Gradle
In the gradle.properties file add the following settings:
systemProp.http.proxyHost=proxyserver
systemProp.http.proxyPort=80
systemProp.http.nonProxyHosts=*.mycorp.com|localhost
systemProp.https.proxyHost=proxyserver
systemProp.https.proxyPort=80
systemProp.https.nonProxyHosts=*. mycorp.com|localhost
GO Package Type
Creating Local, Remote, and Virtual Repositories
In this section, we will create GO repositories. As you may be aware, now to create all the repositories, here is just a snapshot of the repositories created for the GO package type.
For the GO package type, we will create a package and use that in another app.

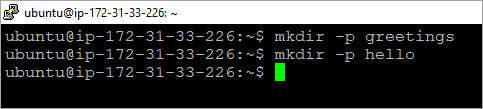

For e.g. greetings is a package and hello is the main routine.
Pre-requisite is as follows to be installed on the VM
Install golang on the system: https://go.dev/doc/install
Install JFrog CLI on the system: https://jfrog.com/getcli/
Configure GO Repo
Once the GO virtual repos are created, use the Set Me Up to get details on how to configure, deploy, and resolve your environment.
Use JFRog CLI to add an artifactory server.
jf c add rt-server –artifactory-url https://vniranjan2512.jfrog.io/artifactory –user niranjan –password <Identity Token Pwd> –interactive=false
#1) Add code to greetings/greetings.go to file
package greetings
import "fmt"
func Hello(name string) string {
// Return a greeting with name
message := fmt.Sprintf("Hi, %v% Welcome to JFrog Artifactory!", name)
return message
}
#2) Add the code to hello/hello.go file
package main
import (
"fmt"
"myteam.com/mygolib"
)
func main() {
// Get a greeting message and print it
message := greetings.Hello("Niranjan")
fmt.Println(message)
}
#3) To publish the greetings package to artifactory run the command in the greetings directory. Replace the below virtual and local servers for your instance.
jf go-config –server-id-resolve rt-server –repo-resolve niranjan-go-virtual –repo-deploy niranjan-go-local
Run the below commands in the greetings folder
go mod init myteam.com/mygolib go mod tidy jf go build jf gp v1.0.0
Resolve the Go package
In the hello directory, run the commands as shown below:
#go proxy from Set Me Up of Virtual repo
export GOPROXY=https://niranjan:@vniranjan2512.jfrog.io/artifactory/api/go/niranjan-go-virtual go mod init myteam.com/mygopkg export GONOSUMDB=myteam.com/mygolib go mod tidy go build // Run the hello.go file go run hello.go
Conclusion
In this series on JFrog Artifactory as a binary repository manager, we have seen how to use the platform with Generic, Maven, Docker, NPM, Gradle, and Go package types, though it supports around 25+ package formats. The process of using JFrog Artifactory around other package formats would be similar and should follow the Set Me Up instructions for every repository.
Recommended Reading =>> How to Create a Gradle Project with Selenium
Also, one can follow the Virtual repository format to combine both local and remote repositories, which will provide one endpoint to deal with in your build and deployments.
Along with the above examples across this series, we have also shown how to use the Artifactory integrated with Jenkins for most of the package types.
Hope that this series so far has helped you to gain knowledge on how to use Artifactory as a binary repository manager to manage your builds and deployments.
