Amazon ECR Public and Private Repositories: Complete Setup

This guide explains the differences between public and private repositories while walking you through creating repositories, pushing images, and integrating Jenkins for automated workflows.

Amazon Elastic Container Registry (ECR) is AWS’s managed container registry service designed to store, manage, and deploy Docker images securely.

This guide focuses on the two repository types supported by ECR — public and private — and explains how to create, configure, and use them. You will learn how to build, tag, and push images, and how to integrate Jenkins for automated deployments.

By the end of this tutorial, you will understand the key differences between public and private repositories and know how to set up both in real-world workflows.

If you haven’t already, start with Part 1 of this series to learn the basics of Amazon ECR, including its key features, benefits, and requirements, before moving on to Part 2 of this series – Amazon ECR Public and Private Repository setup.

Table of Contents:

Introduction to Amazon ECR Public and Private Repositories
Comparison of Amazon ECR Public Repositories vs Private Repositories
Amazon ECR Public Repositories
Amazon ECR Private Repositories
Conclusion

Introduction to Amazon ECR Public and Private Repositories

Amazon ECR Public and Private Repositories Complete Setup

Amazon Elastic Container Registry (ECR) is a fully managed container registry service from AWS that lets you store, manage, and deploy Docker container images. ECR supports two types of repositories: public and private.

The diagram below shows the workflow:

Public repositories are accessible to anyone on the internet, making them ideal for open-source projects, community sharing, or public distribution of container images. In contrast, private repositories are restricted to specific AWS accounts or IAM users, ensuring that only authorized users can access and deploy the images.

Both repository types support standard Docker workflows, allowing developers to build, tag, and push images using the Docker CLI. The key difference lies in access control and visibility — public repositories offer broad access, while private repositories provide tighter security and governance through IAM policies.

In the sections below, we will walk you through creating both public and private ECR repositories, pushing images, and integrating Jenkins for automated deployments.

Please note: As a prerequisite, we will need the AWS CLI to be installed to authenticate with Amazon ECR, and Docker installed as well on any Linux system (e.g., EC2 VM) with access to the Amazon ECR service.

These instructions for installing AWS CLI are already covered in Part 1 of the series.

Comparison of Amazon ECR Public Repositories vs Private Repositories

Feature	Amazon ECR Public Repository	Amazon ECR Private Repository
Visibility	Publicly accessible to anyone	Restricted access within AWS accounts
Primary Use Case	Sharing container images publicly	Storing and managing private container images
Access Control	No authentication required to pull images	IAM-based authentication and permissions required
Security Level	Suitable for non-sensitive images	High security for internal and production workloads
Docker Image Push	Requires AWS authentication	Requires AWS authentication
Docker Image Pull	Public pull without login	Pull requires authentication
Permissions Management	Limited access control	Fine-grained IAM policies supported
Best For	Open-source projects, demos, learning	Enterprises, CI/CD pipelines, private apps
Pricing Model	Free tier with usage limits	Pay-as-you-go based on storage and data transfer
Compliance & Governance	Not ideal for regulated workloads	Suitable for compliance-driven environments

Amazon ECR Public Repositories

This section deals with the creation of the Amazon ECR Public Repository, along with the ways to build, tag, or push an image in the repository. You will get to know about integrating Jenkins with Amazon ECR in the Public Repository.

Create an Amazon ECR Public Repository

In this section, we will look at how to create an Amazon ECR public repository to store our container images and also build/tag/push the images from a local machine to the Amazon ECR repository. From the AWS services, search for ECR and click on Create to create a public repository.

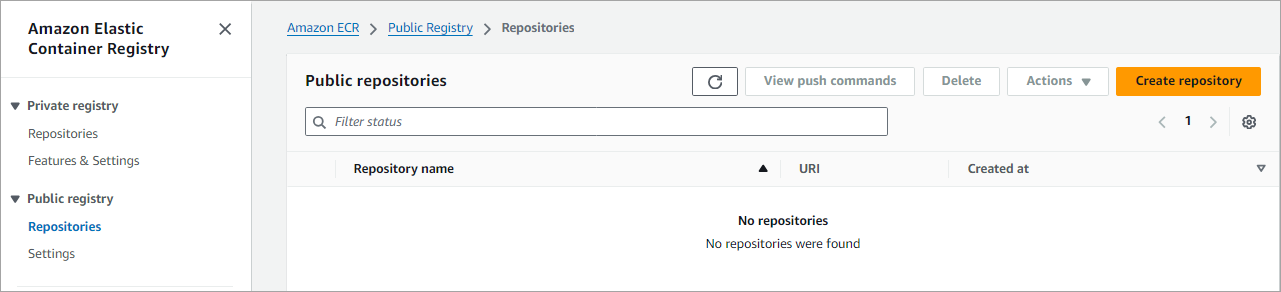

From the left navigation pane, choose Repositories under Public registry. Click on Create repository

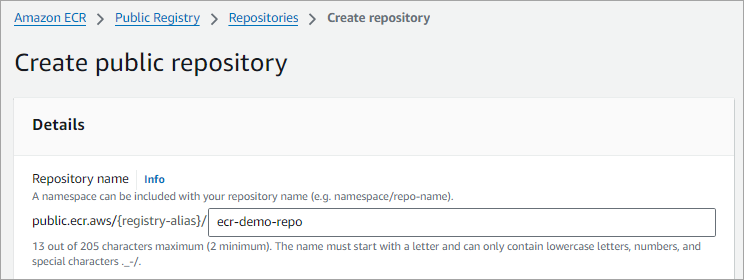

Enter a name in lowercase and click on Create.

Build, Tag, and Push an Image to a Public Repository

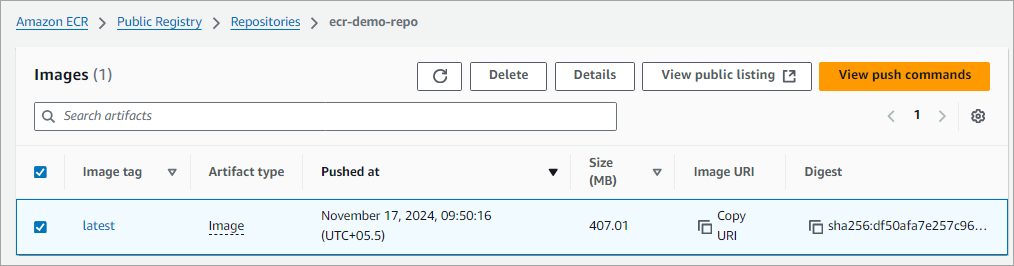

Once the repository is created, click on View push commands, which will provide you with commands to log in, build, tag, and push the image to your ECR repository just created, as shown below.

The complete URI for the repository is public.ecr.aws/{Default_Registry_Alias}/ecr-demo-repo

Note: Public repositories do not need any AWS account or IAM credentials to pull images

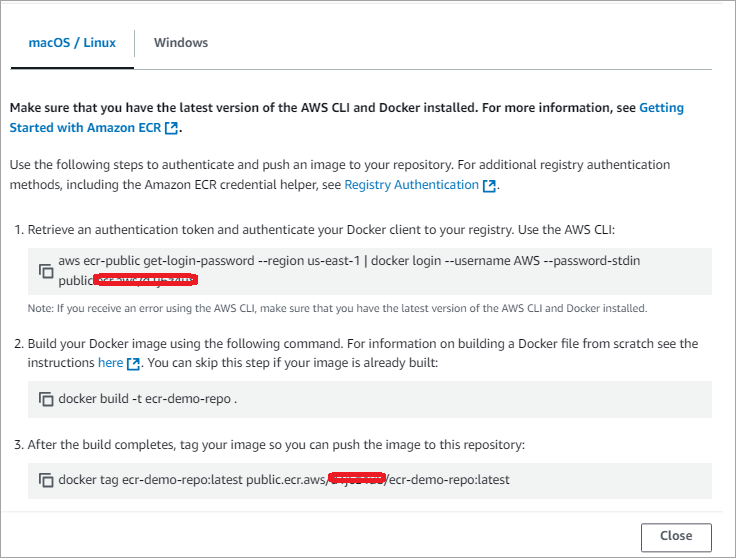

Run the commands as shown from the folder where the Dockerfile is stored to log in, build, and push the image.

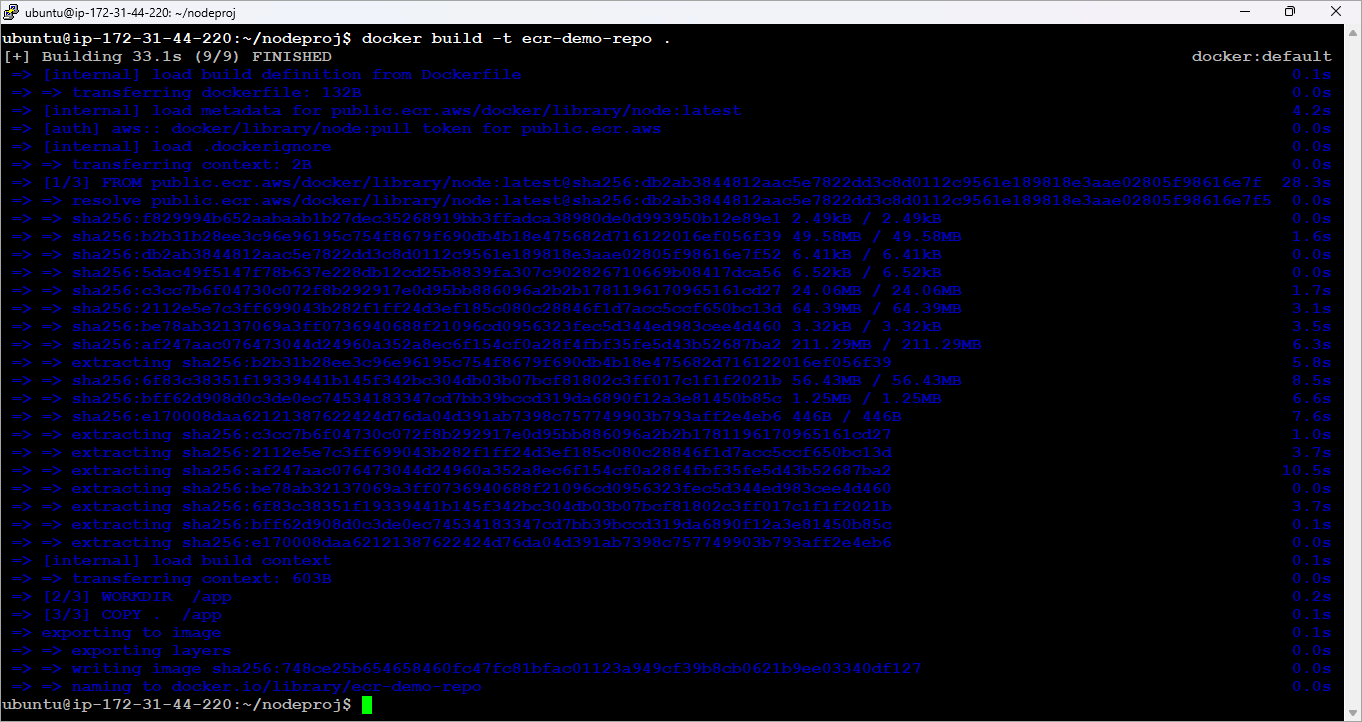

Run the login command first and build the image as shown with the command below.

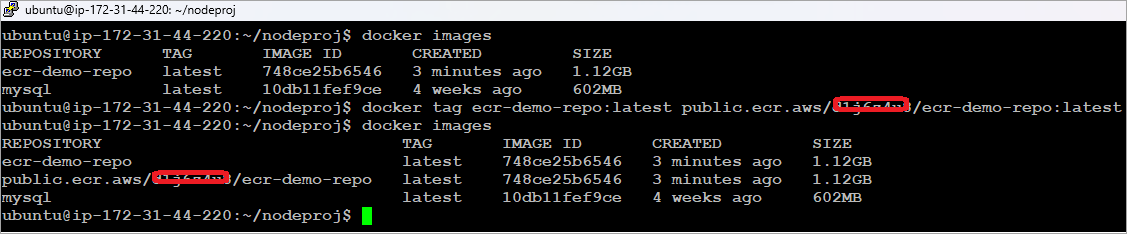

Tag the image as shown below.

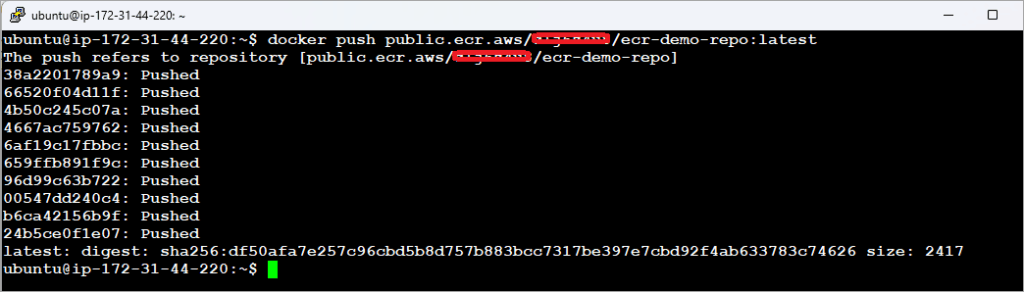

Push the Docker image to the Amazon ECR public repository as depicted in the image.

The image is now pushed to the repository. Click on the repository to view the images.

Integrate Jenkins With Amazon ECR (Public Repository)

In this section, we will see how to integrate Jenkins with Amazon ECR to automate the above manual steps of Docker image build and push to the ECR public repository.

We will look at the following steps:

Install Docker/Amazon ECR Jenkins plugin.
Set up Jenkins slave node on AWS EC2 VM (Ubuntu).
Create a freestyle Jenkins pipeline to build, tag, and push a Docker image to a public repo.

Step 1: Install Docker/Amazon ECR Jenkins plugin.

Download and install the plugins as an admin user.

Step 2: Set up Jenkins slave node on AWS EC2 VM (Ubuntu)

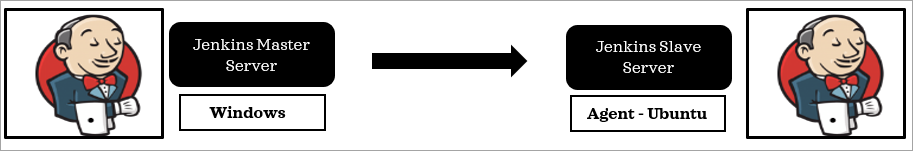

I am using a Jenkins master server running on a Windows machine, which manages the job pipelines, and a slave is on an EC2 VM running Ubuntu, where Docker is installed, and the build command will be run through the jobs submitted to the master server.

Let’s look at how to create the slave node on the AWS EC2 VM.

C:\Users\ADMIN> ssh-keygen
C:\Users\ADMIN> type .ssh\id_rsa.pub

Copy the content of the above command and log in to the slave node (EC2 Ubuntu VM). Add the copied content to the authorized_keys file.

# vi .ssh/authorized_keys

From the Jenkins master machine (Windows) ssh to the slave node using the below command. It will ask to accept the ssh fingerprint. Type yes and enter. You should now be able to ssh into the slave node using the command below.

ssh userid@EC2VM-IP-Address

Useridis‘ubuntu’ for EC2 VM running Ubuntu.

Step 3: Create a new Slave Node

Go to Manage Jenkins 🡪 Manage nodes

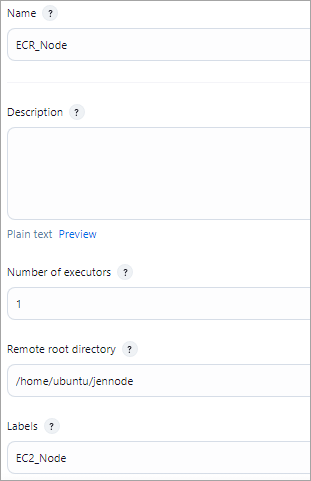

Click on + New Node and select Permanent Agent. Add the details below.

Add the host IP of the slave machine (EC2 VM) and add credentials.

For credentials, select the + Add 🡪Jenkins, and the Kind of credential should be “SSH Username with private key”. Add the details below of username and private key contents.

Username is ubuntu, which is the login of the AWS EC2 VM. In the private key field, add the Jenkins master’s machine private key. You can find the private key in ~/.ssh/id_rsa file.

E.g. If Jenkins Master is in Windows, here is the file in C:\users\<UserName>\.ssh\id_rsa

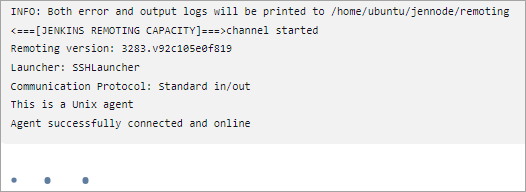

Click on Save, and you should see the agent connected successfully.

Step 4: Create a Jenkins pipeline, a freestyle job

The Jenkins pipeline will contain the following steps:

Select the slave node (in this case, it is the EC2 VM) for the pipeline to run
Jenkins Source Code Management to get the latest code changes from the GitHub repository.
Setup environment variables
- REGISTRY_ALIAS={Value as shown during public repository creation}
- URL_REGISTRY = public.ecr.aws/(REGISTRY_ALIAS)
- REGION= As shown in section 7, with the login command
Build the Docker image using ${BUILD_NUMBER} as the tag to version the image using the Docker plugin.
Push the Docker image to the Amazon ECR public repository.

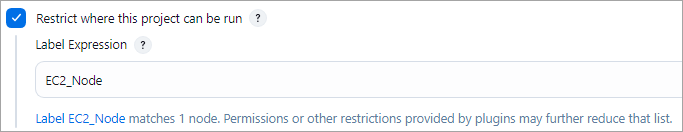

Select the slave node under the General TAB in the job.

Source Code Management Step with GitHub credentials and using the main branch.

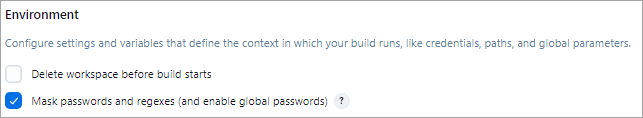

Setup Environment variables

Use the Mask passwords option to set up the variables (REGISTRY_ALIAS, URL_ REGISTRY, and REGION) as described at the beginning of the step. If this plugin is not installed, then install it.

Docker Build and Push to Amazon ECR repository as part of Build Step

Use the commands below to build, tag, and push the Docker image to the Amazon ECR repository.

Build Step 1 🡪 Execute Shell

Login step to Amazon ECR: This command is shown in section 7 for the ECR repository. Modify the command to use the environment variables defined.

Build Step 2 🡪 Docker Build and Publish

No other details need to be entered. Save the Jenkins Job.

Run the Jenkins job

Look at the Jenkins job console output, and all the commands should have run successfully.

Browse the URL https://gallery.ecr.aws/REGISTRY_ALIAS/ecr-demo-repo, and you should see the latest version of the Docker image pushed to the ECR repository.

Also, look at the ECR public repository listing to view the latest version pushed.

Amazon ECR Private Repositories

This section deals with the creation of an Amazon ECR Private Repository, along with the ways to build, tag, or push an image in the repository. You will get to know about the integration of Jenkins with Amazon ECR in the Private Repository.

Create an Amazon ECR Private Repository

In this section, we will look at how to create an Amazon ECR Private Repository using the console to store our Docker images and set appropriate permissions for accessing the repositories.

You can use a private registry to manage private repositories that comprise Docker images. An Amazon ECR private repository is isolated from public registries and is accessible only to the AWS account of the developer or to certain authorized users.

By default, your Amazon account would have read and write privileges to the repositories in the default registry, which is aws_account_id.dkr.ecr.your-region.amazonaws.com. But users will need permissions to push and pull images to/from the repository.

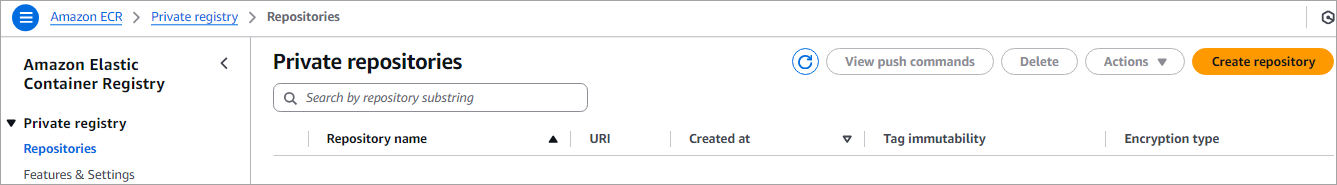

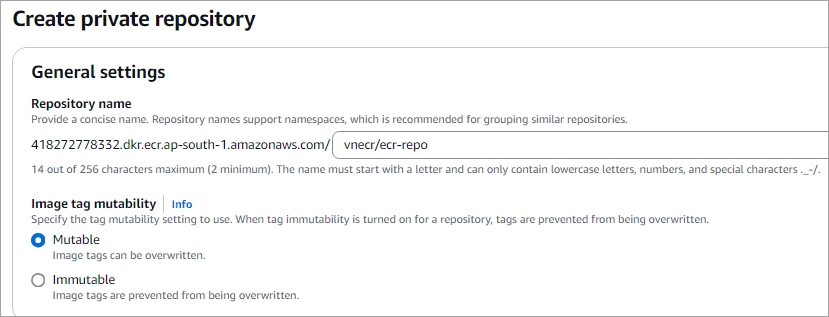

To create a private repository, go to the ECR console and click on Create repository under Private registry -> Repositories

Enter a name in the format namespace/repo-name

Namespace can be your project name. Click on Create.

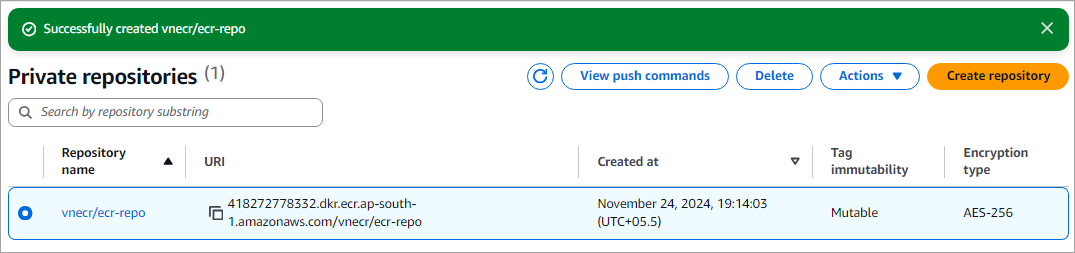

Repository is now listed.

Build, Tag, and Push an Image to a Private Repository

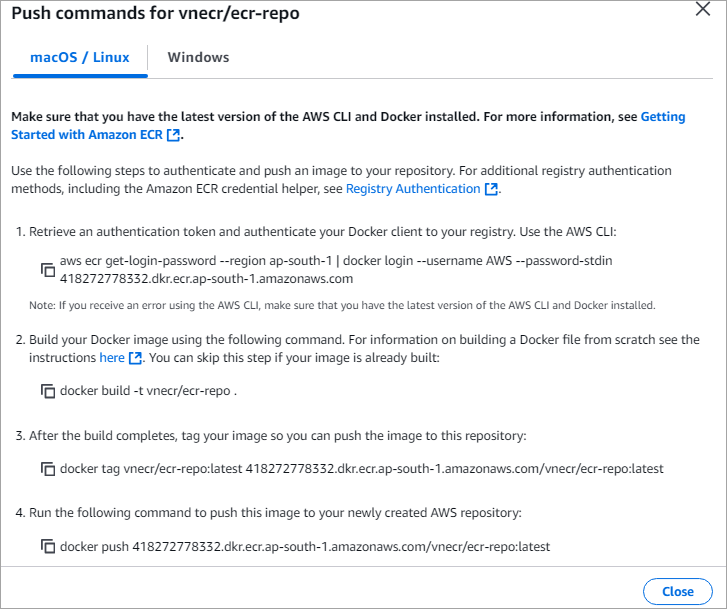

Select the repository and click on View push commands to view the commands for login/build/tag/push image to the private repository.

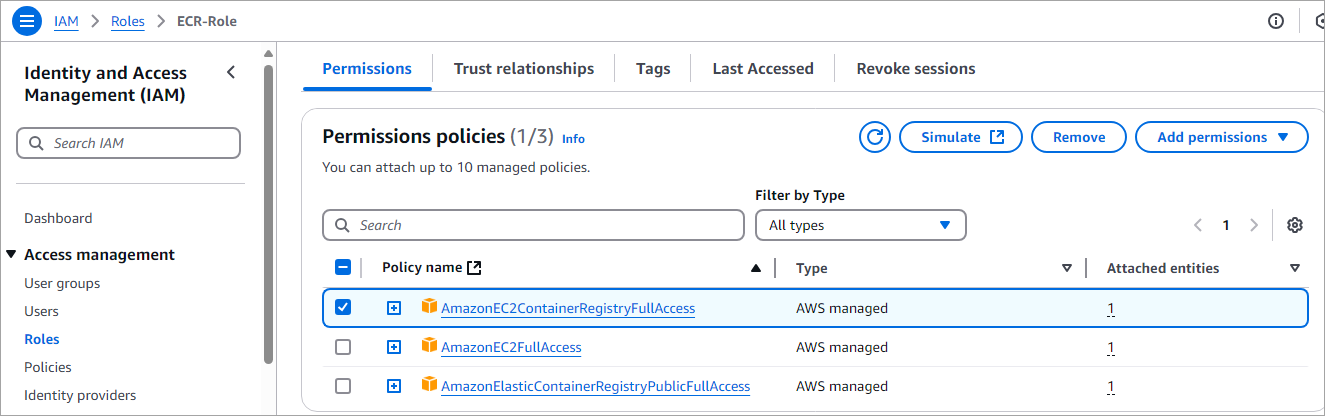

Run the above commands from the folder where the Dockerfile is stored. Before running the above commands, attach the AmazonEC2ContainerRegistryFullAccess policy to the IAM role created in section 4.

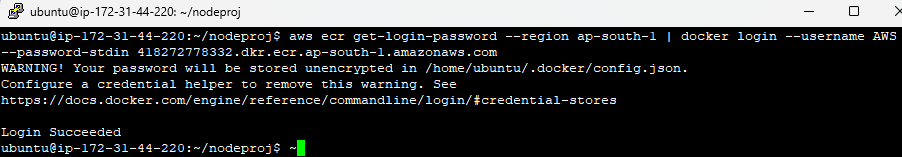

Step 1: Authenticate to your repository

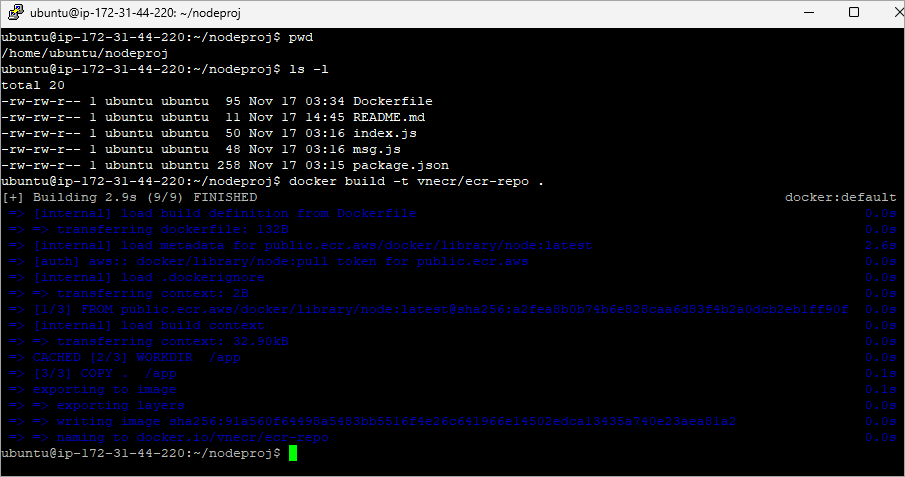

Step 2: Build Docker Image

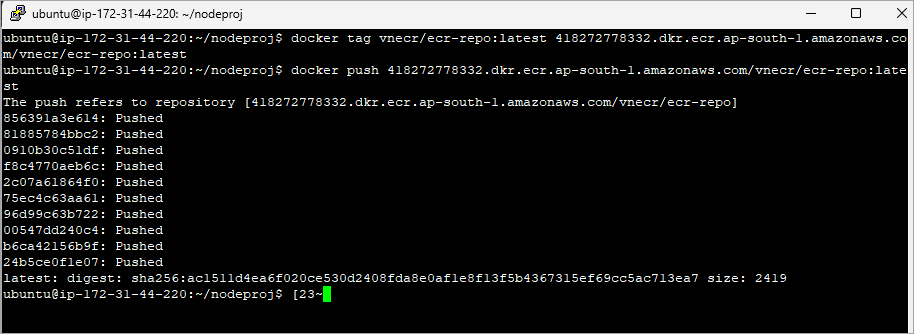

Step 3: Tag and push your image to the repository.

Integrate Jenkins with Amazon ECR (Private Repository)

In this section, we will see how to integrate Jenkins with Amazon ECR to automate the above manual steps of Docker image build and push to the ECR private repository.

We will look at the following steps:

Use the Jenkins slave node on AWS EC2 VM (Ubuntu) created in section 3
Create a freestyle Jenkins pipeline to build, tag, and push a Docker image to a private repo

As described in section 3, select the node for the job to be run and also configure the SCM step.

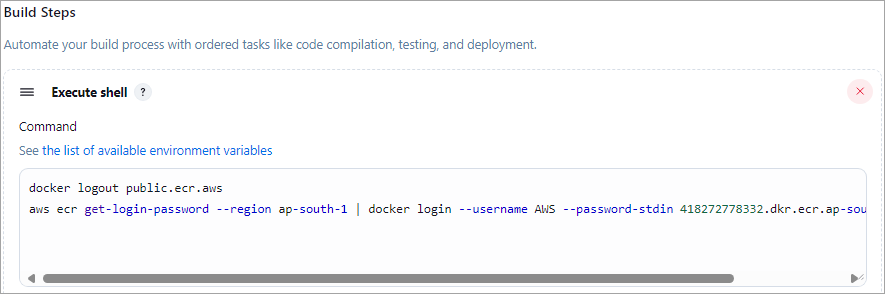

Build Step 1 🡪 Execute shell

The first command will log out of the Amazon ECR Public if there was a previous authentication, and will result in an unauthenticated pull of images from the Amazon ECR public gallery.

The second command will log in to the Amazon ECR private registry as per the view push command listing for the private repository shown in the previous section.

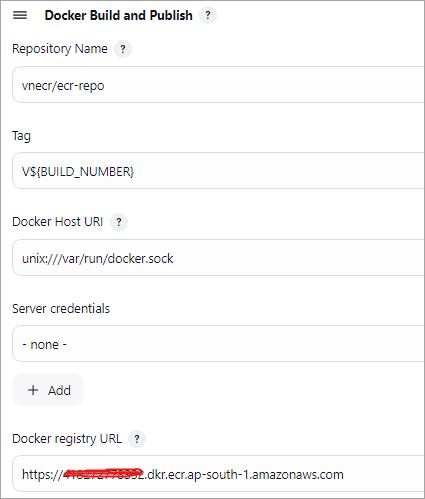

Build Step 2 🡪 Docker Build and Publish

Configure the step as shown using the details of the private repository created.

Save the job, run the Jenkins job. Look at the Jenkins job console output, and all the commands should have run successfully.

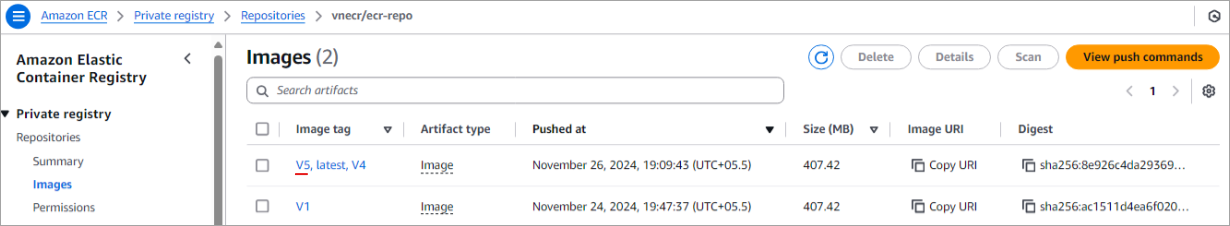

Look at the Amazon ECR Private repository to verify if the Docker image is pushed.

Conclusion

In this tutorial, we have seen how Amazon ECR is easy to implement to push container images and pull images without using any tools or utilities.

We also looked at how to automate the Docker Build and Publish of the images to Amazon ECR public and private repositories using Jenkins, which is probably the way developers should work, or, for that matter, use any other CI/CD tool to automate manual steps, which is very much essential for modern-day development and deployment.

In the last part 3 of the series, we will look at the security aspect of Docker images and also integration789 with another CI/CD tool, GitHub Actions.
